| 1. Monolithic inorganic material construction. |
| 2. Closed magnetic circuit avoids crosstalk. |
| 3. Suitable for reflow soldering. |
| 4. Shapes and dimensions follow E.I.A. spec. |
| 5. High Current Bead Low RDC |
| 6. Excellent solder ability and heat resistance. |
| 7. High reliability. Reliability test meet AEC-Q200. |
| 8. 100% Lead(Pb) & Halogen-Free and RoHS compliant. |
| 9. Low DC resistance structure of electrode to prevent wasteful electric power consumption. |
| 10. Operating Temperature: -55~+150℃(Including self-temperature rise) |

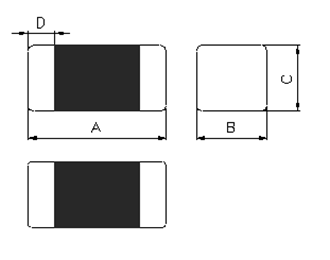

| Series | A | B | C | D |
| HFZ1005 | 1.00±0.10 | 0.50±0.10 | 0.50±0.10 | 0.25±0.10 |
| HFZ1608 | 1.60±0.15 | 0.80±0.15 | 0.80±0.15 | 0.30±0.20 |
| HFZ2012 | 2.00±0.20 | 1.25±0.20 | 0.85±0.20 | 0.50±0.30 |
| HFZ3216 | 3.20±0.20 | 1.60±0.20 | 1.11±0.20 | 0.50±0.30 |
| HFZ | 1005 | P | V - | 600 | T | 25 |
| A | B | C | D | E | F | G |
A: Series
B: Dimension L x W
C: Material Lead Free Material
D: Category Code V=Vehicle
E: Impedance 600=60Ω
F: Packaging T=Taping and Reel, B=Bulk(Bags)
G: Rated Current 25=2500mA
| Part Number | Impedance (Ω) | Test Frequency (MHz) | DC Resistance (Ω) max. | Rated Current (mA) max. |
|---|---|---|---|---|
| HFZ1005PV-100T40 | 10±25% | 100 | 0.018 | 4000 |
| HFZ1005PV-300T30 | 30±25% | 100 | 0.022 | 3000 |
| HFZ1005PV-600T25 | 60±25% | 100 | 0.032 | 2500 |
| HFZ1005PV-800T23 | 80±25% | 100 | 0.038 | 2300 |
| HFZ1005PV-121T20 | 120±25% | 100 | 0.05 | 2000 |
| HFZ1005PV-221T15 | 220±25% | 100 | 0.095 | 1500 |
| HFZ1005PV-301T12 | 300±25% | 100 | 0.15 | 1200 |
| HFZ1005PV-471T11 | 470±25% | 100 | 0.18 | 1100 |
| HFZ1005PV-601T10 | 600±25% | 100 | 0.2 | 1000 |
| HFZ1608PV-300T50 | 30±25% | 100 | 0.01 | 5000 |
