1. High common mode impedance at high frequency effects excellent noise suppression performance.
2. Realizes small size and low profile.
3. 100% Lead(Pb) & Halogen-Free and RoHS compliant.
Dimension
Size | A | B | C | D | E | F | G |
TCM322512F3SFV | 3.2±0.2 | 2.5±0.2 | 1.3 max. | 0.4±0.1 | 0.6±0.1 | 0.5±0.1 | 0.5±0.1 |
TCM322512F3SFK | 3.2±0.2 | 2.5±0.2 | 1.3 max. | 0.4±0.1 | 0.6±0.1 | 0.5±0.1 | 0.5±0.1 |

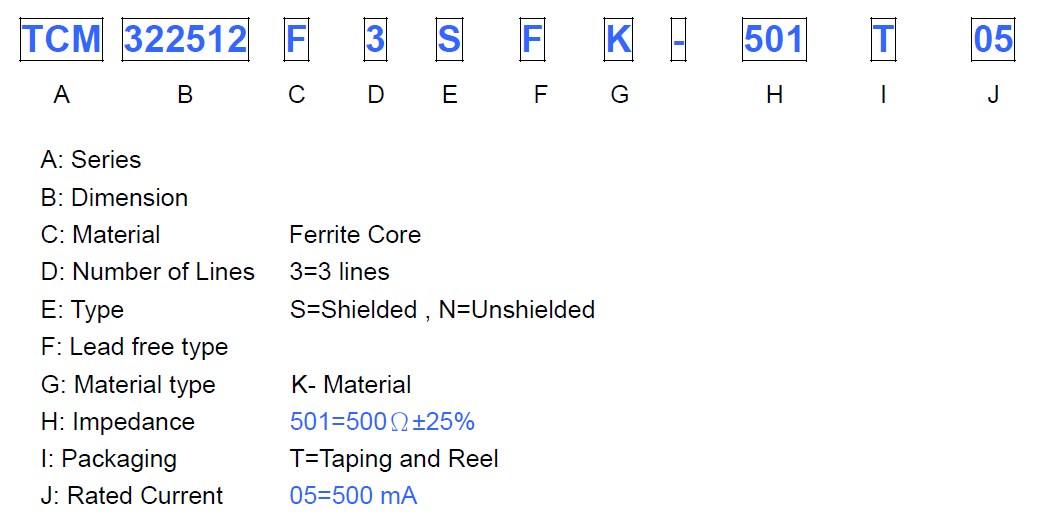

Part Numbering
Part Number | Common mode Impedance (Ω) | Test Frequency (MHz) | DC Resistance (Ω) max. | Rated Current. (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR (Ω) min. |
---|---|---|---|---|---|---|---|
TCM322512F3SFK-501T05 | 500±25% | 100 | 0.43 | 500 | 50 | 125 | 10M |
TCM322512F3SFV-241T03 | 240±25% | 100 | 0.33 | 300 | 50 | 125 | 10M |
