1. High common mode impedance at high frequency effects excellent noise suppression performance.
2. Realizes small size and low profile.
3. 100% Lead(Pb) & Halogen-Free and RoHS compliant.

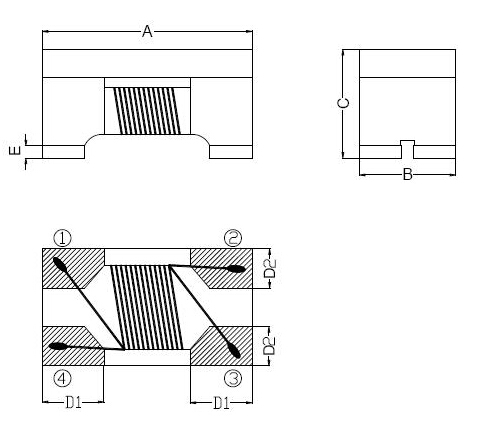

Dimension
| Size | A(mm) | B(mm) | C(mm) | D1(mm) | D2(mm) | E(mm) |
| 1210 | 1.2±0.2 | 1.0±0.2 | 0.9 max. | 0.35±0.1 | 0.35±0.1 | 0.03 min. |
| 2012 | 2.0±0.2 | 1.2±0.2 | 1.2±0.2 | 0.55±0.1 | 0.46±0.1 | 0.15±0.1 |

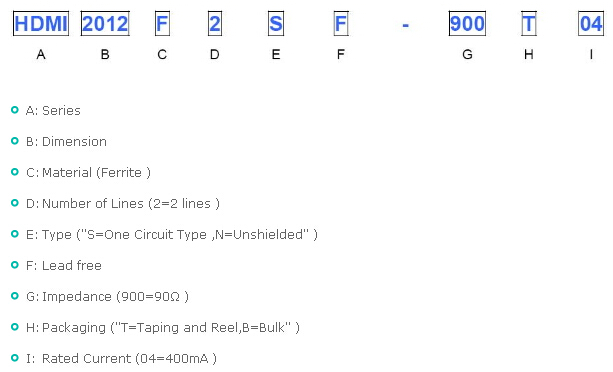

Part Numbering
| Part Number | Common mode Impedance (Ω) | Test Frequency (MHz) | DC Resistance (Ω) max. | Rated Current. (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR (Ω) min. |
|---|---|---|---|---|---|---|---|
| DVI2012F2SF-500T04 | 50 typ. 38 min. | 100 | 0.3 | 400 | 50 | 125 | 10M |
| DVI2012F2SF-900T04 | 90 typ. 65 min. | 100 | 0.3 | 400 | 50 | 125 | 10M |
| HDMI1210F2SF-600T04 | 60±25% | 100 | 0.3 | 400 | 50 | 125 | 10M |
| HDMI1210F2SF-670T04 | 67±25% | 100 | 0.3 | 400 | 50 | 125 | 10M |
| HDMI1210F2SF-900T02 | 90±25% | 100 | 0.3 | 250 | 50 | 125 | 10M |
| HDMI2012F2SF-670T04 | 67 typ. 50 min. | 100 | 0.3 | 400 | 50 | 125 | 10M |
| HDMI2012F2SF-900T04 | 90 typ. 65 min. | 100 | 0.3 | 400 | 50 | 125 | 10M |
