Product Description
1. Hearing Aid Compatibility-/Telecoil-antennas;
2. Realizes small size and low profile.
3. 100% Lead(Pb) & Halogen-Free and RoHS compliant.
4. Meets the T3/T4 FCC requirements(HAC-Act) acc. ANSI C63.19

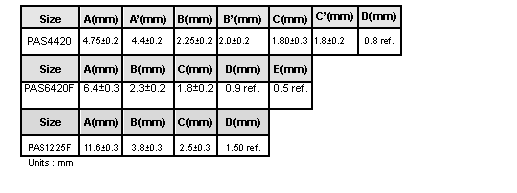

Dimension

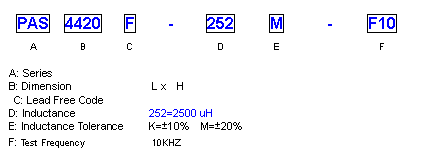

Part Numbering
Part Number | Inductance (uH) | fL0 (kHz) | SRF MHz(min) | RDC (Ω) ±10% | Rated current (mA) max |
---|---|---|---|---|---|
PAS4420F-252M-F10 | 2500 | 10 | 1 | 82 | 40 |
PAS4420F-352K-F10 | 3500 | 10 | 1 | 85 | 20 |
PAS6420FT-701K | 700 | 10 | 2.45 | 12 | 80 |
