1.Ceramic core wire wound construction.
2.No batch to batch variations in inductance,SRF and Q that are present in ferrite inductors.
3.High Reliability due to ceramic wire wound construction.
4.High frequency application.
5.Small footprint as well as low profile.
6.100% Lead(Pb) & Halogen-Free and RoHS compliant.

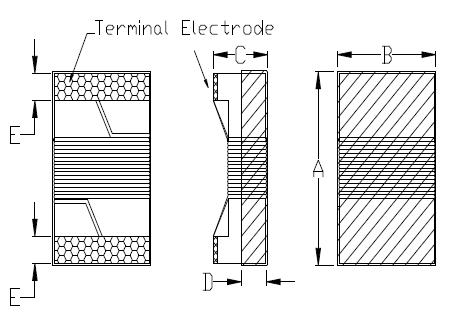

| Size | A | B | C | D | E |
| SWI0402 | 1.09±0.1 | 0.60±0.1 | 0.56±0.1 | 0.20±0.15 | 0.23±0.1 |
| SWI0603 | 1.80 max. | 1.20 max. | 1.20 max. | 0.38 ref. | 0.35±0.1 |
| SWI0805 | 2.40 max. | 1.60 max. | 1.40 max. | 0.51 ref. | 0.44±0.1 |
| SWI1008U | 2.92 max. | 2.79 max. | 2.20 max. | 1.20 ref. | 0.55±0.1 |

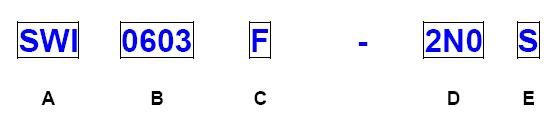

 | A: | Series |
| B: | Dimension (L x W ) |
| C: | Application |
| D: | Lead free type |
| E: | Inductance (2N0=2.0nH ) |
| F: | Inductance Tolerance ("C=±0.2nH,S=±0.3 nH,J=±5%,K=±10%" ) |
| TAI-TECH Part Number | Inductance (nH) | Tolerance | Test Frequency (Hz) | Q @ MHz min. | Rated Current (mA) max. | DCR (Ω) max. | SRF (MHz) min. |
|---|---|---|---|---|---|---|---|
| SWI0603F-2N0□ | 2 | C,S | 0.1V/250M | 13/250 | 700 | 0.07 | 8000 |
| SWI0603F-3N9□ | 3.9 | C,S | 0.1V/250M | 22/250 | 700 | 0.07 | 6900 |
| SWI0603F-4N7□ | 4.7 | C,S | 0.1V/250M | 20/250 | 700 | 0.12 | 5800 |
| SWI0603F-6N8□ | 6.8 | C,J,K | 0.1V/250M | 27/250 | 700 | 0.08 | 5800 |
| SWI0603F-8N2□ | 8.2 | C,J,K | 0.1V/250M | 30/250 | 700 | 0.13 | 4200 |
| SWI0603F-10N□ | 10 | J,K | 0.1V/250M | 31/250 | 700 | 0.13 | 4800 |
| SWI0603F-12N□ | 12 | J,K | 0.1V/250M | 35/250 | 700 | 0.13 | 4000 |
| SWI0603F-15N□ | 15 | J,K | 0.1V/250M | 35/250 | 700 | 0.13 | 4000 |
| SWI0603F-18N□ | 18 | J,K | 0.1V/250M | 35/250 | 700 | 0.16 | 3100 |
| SWI0603F-22N□ | 22 | J,K | 0.1V/250M | 38/250 | 700 | 0.23 | 3000 |
